Feeder Pillars
TPS supply a wide range of feeder pillars, used for housing electrical equipment as part of public and private distribution networks.
Specifications
Fabricated from 3mm mild steel sheet. Standard finish is zinc rich primer / powder coat, or hot dipped galavanised, 18mm thick exterior grade ply backboard, treated with anti-fungicidal wood preservative. Removable door. Earth strap fitted to pillar and door. Fitted with triangular headed locks. Door aperture fully gasketed. Pillar ventilation incorporated into design. Fitted with an integral root section which can be Bitumen coated. Designed to IP54.
Optional Extras
Stainless steel and GRP options also available. Door can be hinged via 2 stainless steel hinges. Can be supplied painted leatherette grey or other colours on request. Pillar can be supplied for surface mounting. Anti-graffiti / fly poster textured finish.Vandal resistant padlock (VRB). Other locks available.
Enquire Now
Distribution Panels

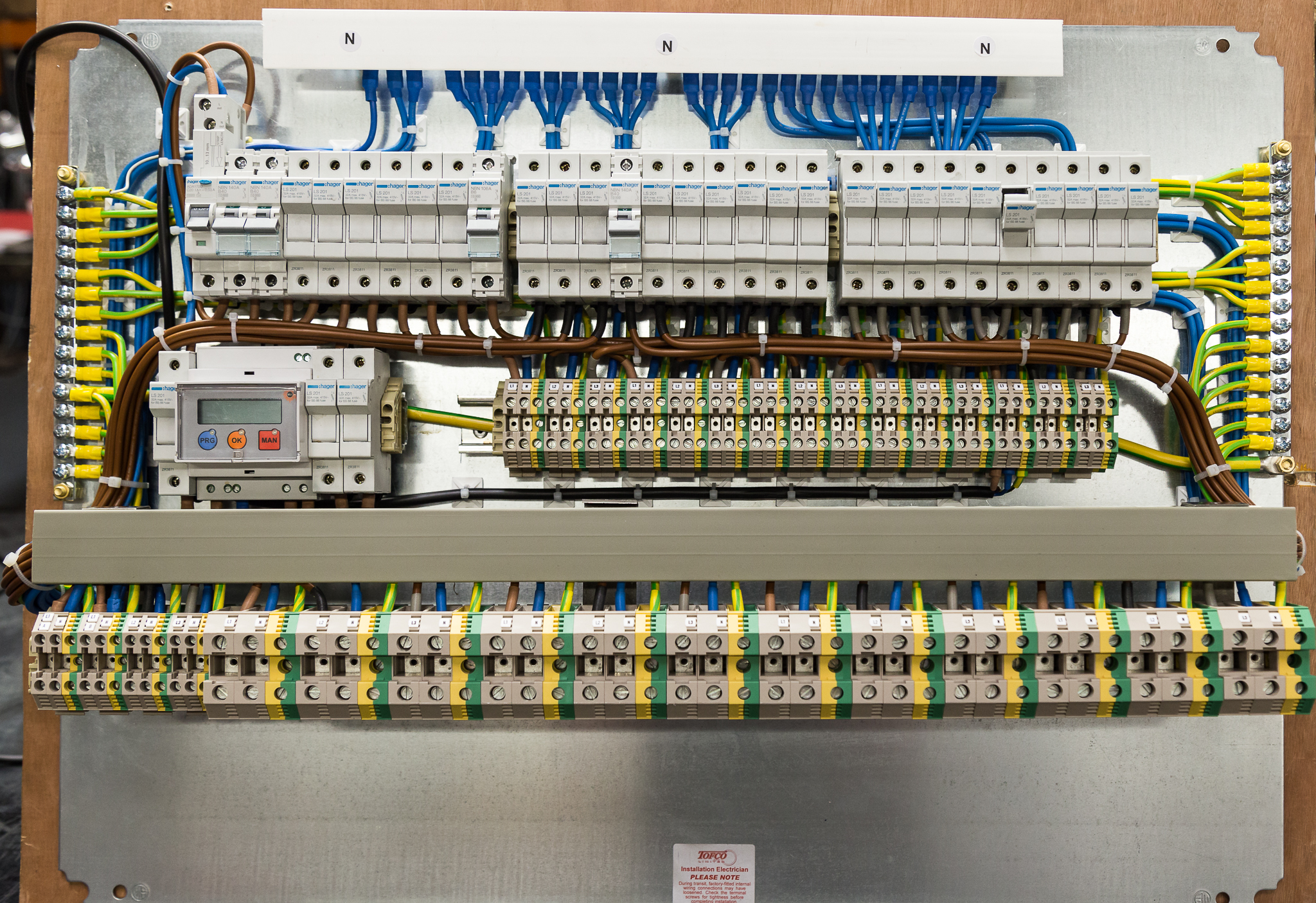

TPS supply a range of pre-wired distribution panels, tailor made for various exterior lighting applications to meet our client's specification. TPS benefit from having over 20 years experience in supplying Pre-wired Panels & Feeder Pillars into the Street Lighting and Electrical Contractor Sectors. Feeder Pillar and Control Panels supplied by TPS are currently powering Motorway & Local Authority Lighting, as well as private applications, throughout the country.
Enquire NowCut Outs
TPS stock and supply a range of Fuse Units (BS7654-2010), moulded from flame retardant self extinguishing ABS. Designed to accept BS88 offset-tag fuse links up to 32A. Fitted with live, neutral and earth 2 way incoming supply terminal blocks as standard for up to 25mm2 conductors (3 way blocks also available). Other configurations are also available.
Dimensions: Height: 160mm, Width: 74mm Depth: 62mm
F144SP Single Pole, Single Fuse Protection, provides loop in / out facility.
F244L Single Pole, Twin Fuse Protection, provides loop in / out facility.
F344SP Three Phase, Single Pole, Single Fuse Protection, provides loop in / out facility.
F144DP Double Pole, Single Fuse Protection, provides loop in / out facility.
F244DL Double Pole, Twin Fuse Protection, provides loop in / out facility.
F344DP Double Pole, Single Fuse Protection, provides loop in / out facility
Enquire NowAlso available in Street Lighting
